ND Driver 2 Audio Compression Driver

Product Description

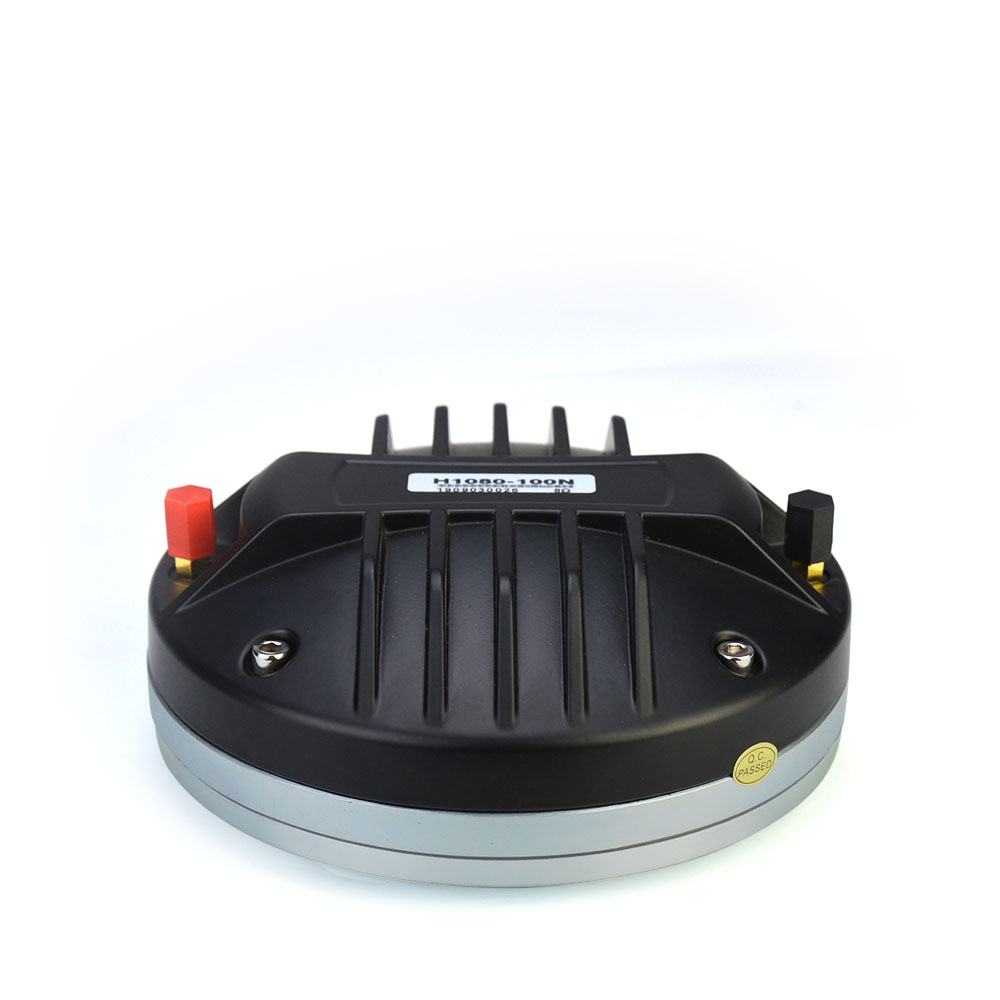

This is a compression driver with a 36 mm (1.4-inch) exit throat and an 8-ohm impedance, engineered for professional horn-loaded applications. It features a titanium diaphragm with a PEK suspension and an aluminum phase plug, driven by a neodymium magnet system. The 75 mm (3-inch) CCAR voice coil ensures high power handling and efficient heat dissipation.

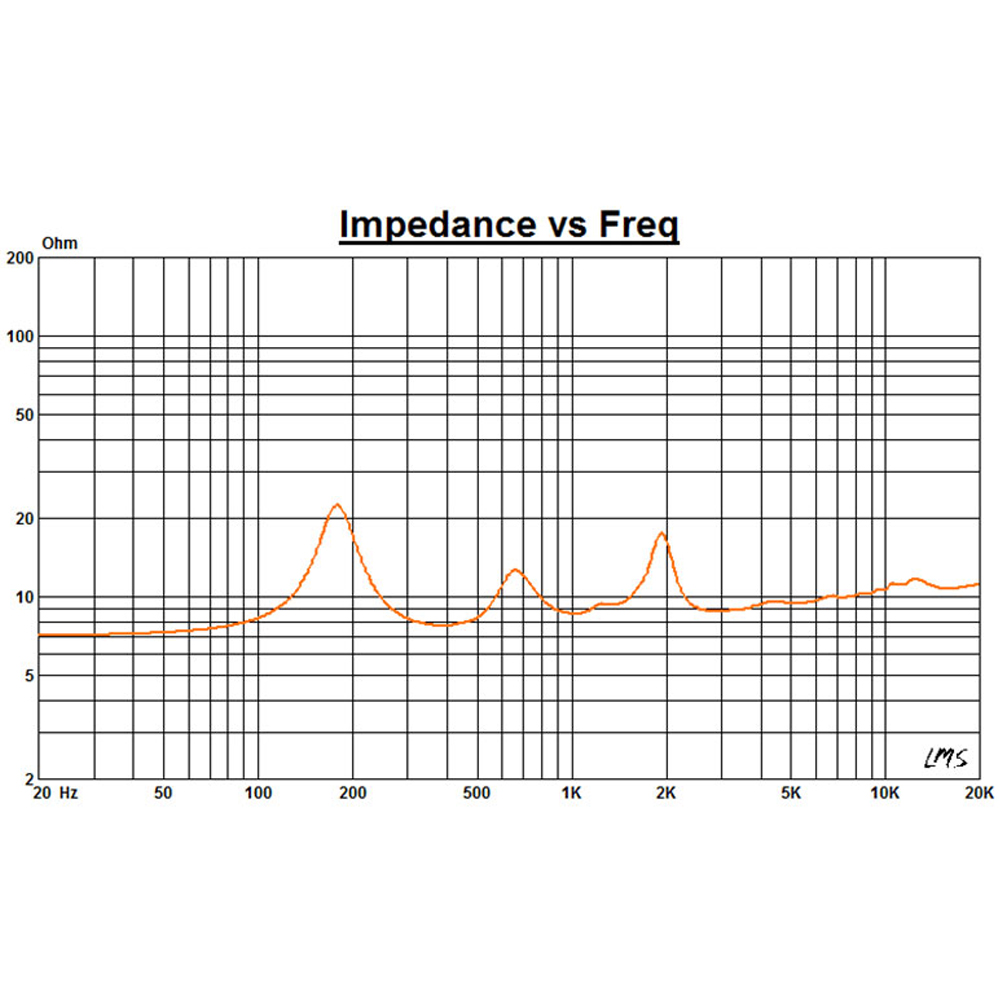

The driver handles 80 W AES and 160 W continuous program power, delivering 108 dB sensitivity (1 W/1 m) across a frequency range of 800 Hz to 19 kHz. Its free-air resonance (Fs) is 800 Hz, and the coil has a DC resistance (Re) of 5.6 ohms.

Mechanical & Mounting Details

• Overall diameter: 124 mm (4.9 in)
• Depth: 58 mm (2.3 in)
• Mounting: 102 mm (4-inch) bolt circle with 4 M6 (0.24-inch) holes

Shipping Information

• Net weight per unit: 2.3 kg
• 10-unit shipping weight: 23.5 kg
• Package dimensions (10 units): 34 27 18 cm
