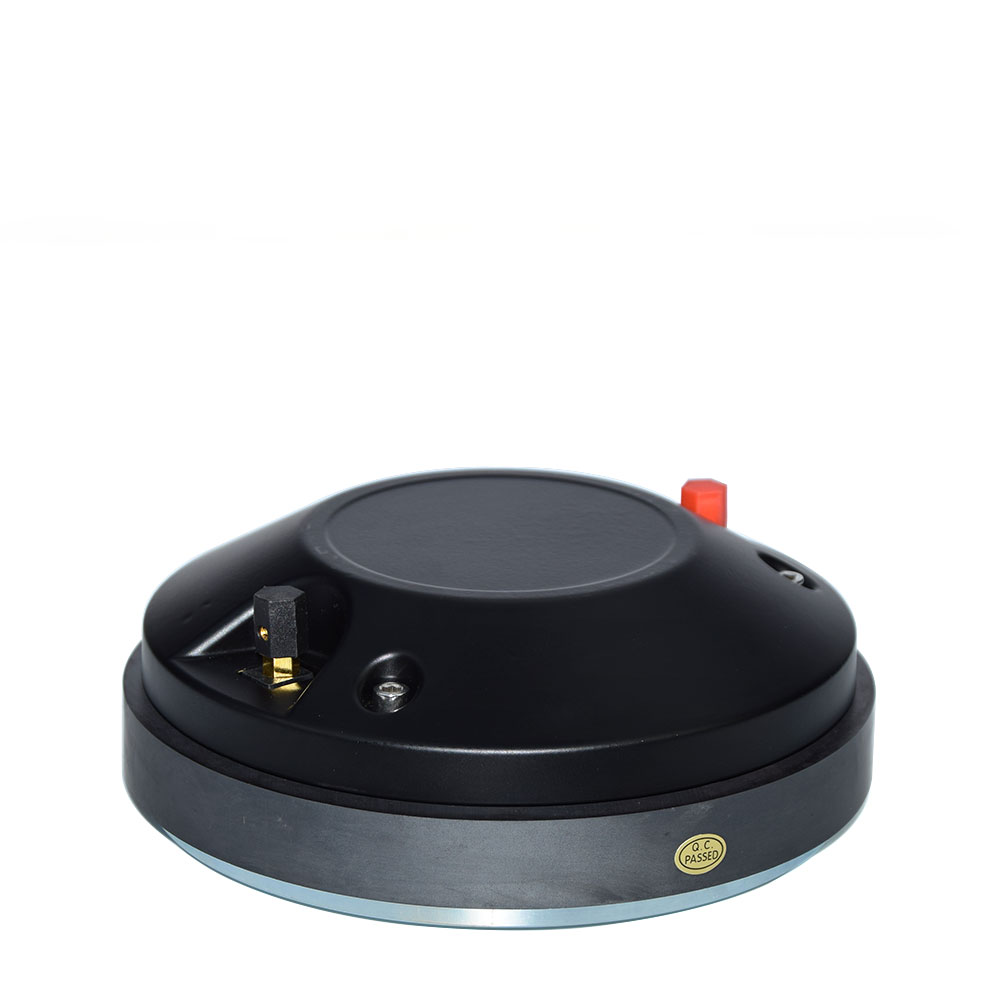

FD driver 1.4 Audio Compression Driver

Name: FD driver 1.4 Audio Compression Driver
Brand: Absolute Design Proaudio Co., Ltd
Price: 1869.0 INR
Availability: InStock

1869.0 INR/Piece

Get a Price/Quote

Product Details:

Product Type Compression driver
Frequency (MHz) 800 Hertz (HZ)
Weight (kg) 4.5 Kilograms (kg)
Frequency 700-18000 Hertz (HZ)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

FD driver 1.4 Audio Compression Driver Price And Quantity

Minimum Order Quantity 10 Piece
Price 1869.0 INR/Piece

FD driver 1.4 Audio Compression Driver Product Specifications

Weight (kg) 4.5 Kilograms (kg)
Product Type Compression driver
Frequency (MHz) 800 Hertz (HZ)
Frequency 700-18000 Hertz (HZ)

Product Description

This professional 1.4-inch compression driver is engineered for high-performance sound reinforcement applications, delivering powerful output, excellent clarity, and long-term reliability. Built with premium materials and optimized acoustic design, it is suitable for line arrays, large PA systems, stage monitors, and high-end loudspeaker enclosures.

Key Features

High Sensitivity 107 dB (1W/1m)
Ensures strong output with minimal amplifier power.

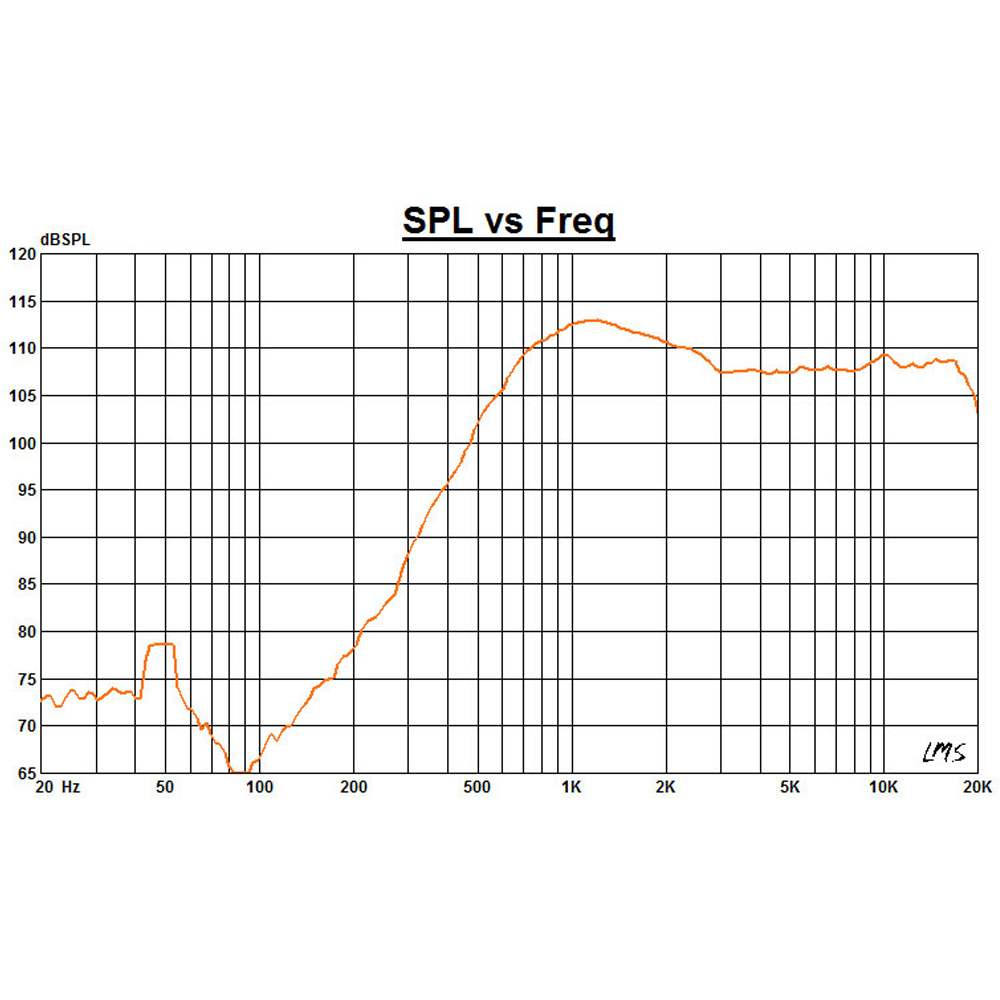

Wide Frequency Response 700 Hz to 18 kHz
Designed to deliver crisp highs and clear mid-range frequencies.
Titanium Diaphragm with PEK Suspension
Offers durability and precise transient response.
3" CCAR Voice Coil
Provides excellent heat dissipation and power handling.
Ferrite Magnet System
Ensures strong magnetic flux and stable performance.
1.4" (36 mm) Exit Throat
Compatible with a wide range of horn designs.

Technical Specifications

Parameter	Value
Driver Type	Compression driver
Exit Throat Diameter	36 mm / 1.4 in
Rated Impedance	8
Power Handling (AES)	90 W
Continuous Program Power	180 W
Sensitivity (1W/1m)	107 dB
Frequency Range	70018,000 Hz
Diaphragm Material	Titanium
Suspension Material	PEK
Magnet Material	Ferrite
Phase Plug	Plastic
Voice Coil Diameter	75 mm / 3 in
Voice Coil Material	CCAR, outside

Thiele-Small Parameters

Parameter	Value
Fs	800 Hz
Re	6

Mounting Information

Dimension	Value
Overall Diameter	170 mm / 6.7 in
Bolt Circle Diameter	102 mm / 4.0 in
Bolt Hole Type	4 M6 (0.24 in)
Depth	65 mm / 2.6 in

Shipping Information

Item	Value
Net Weight (1 unit)	4.5 kg
Shipping Weight (4 units)	20 kg
Package Size (4 units)	38 19 17 cm
