ND driver 1 Audio Compression Driver

Product Description

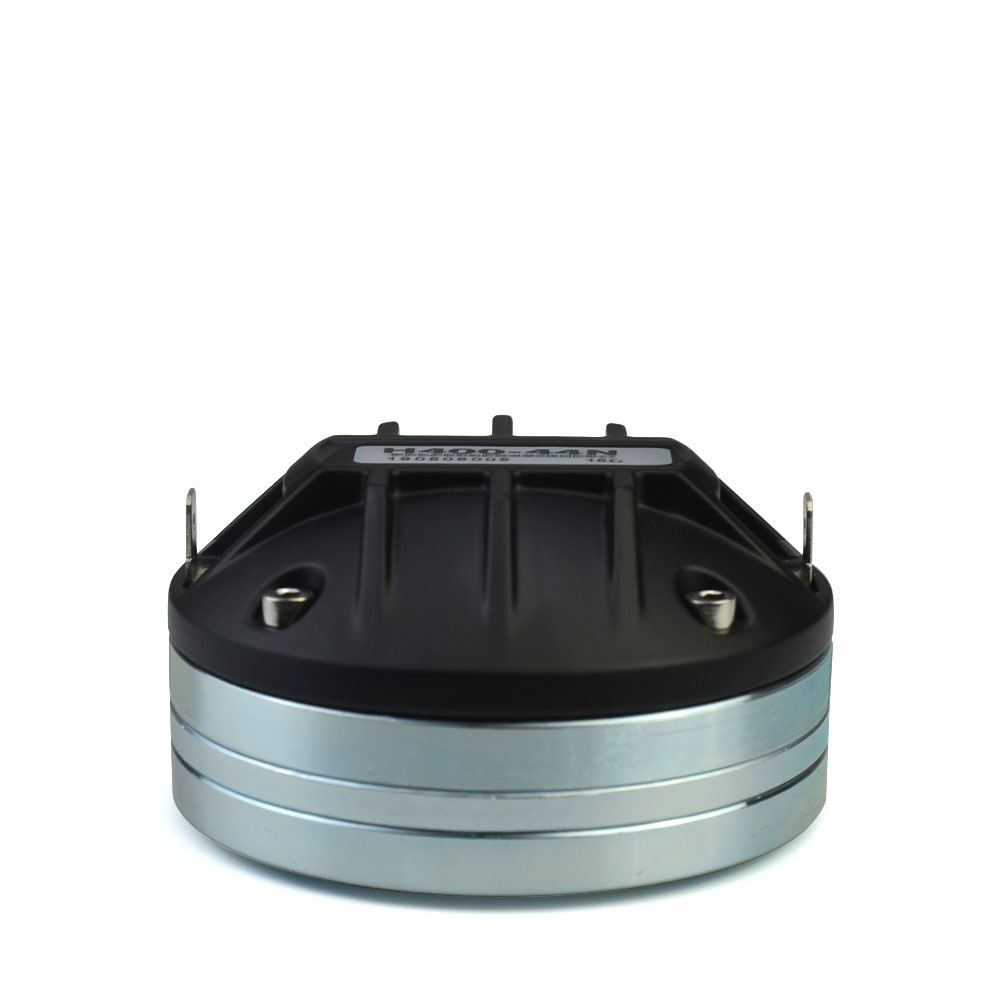

This is a 1-inch exit compression driver designed for high-performance audio applications. It features a 25.4 mm (1 in) exit throat and uses a 44.4 mm (1.7 in) aluminum ribbon (ALR) voice coil wound on the outside for efficient heat dissipation and durability.

The driver uses a polyimide (PI) diaphragm and suspension, offering a balance of rigidity and reliability at high frequencies. A neodymium magnet provides strong magnetic flux in a compact, lightweight structure; while a plastic phase plug, helps control wave propagation for improved high-frequency performance.

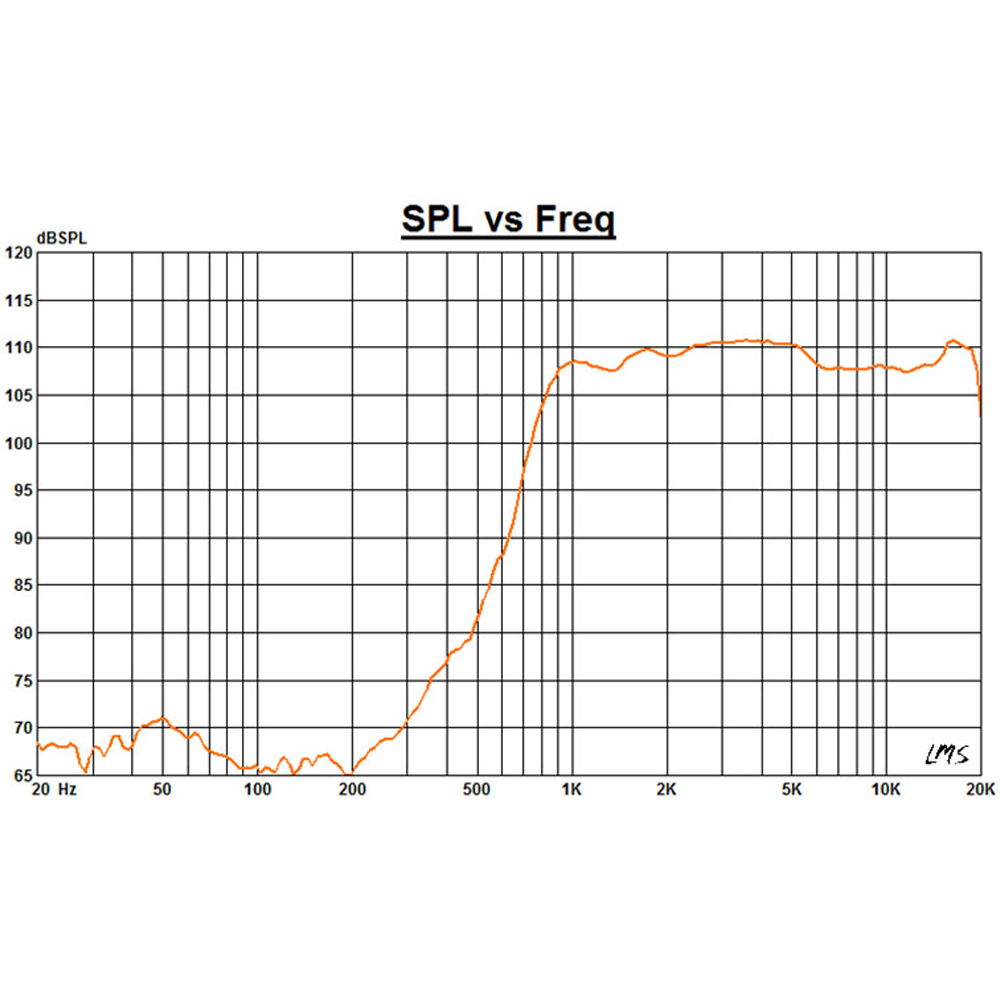

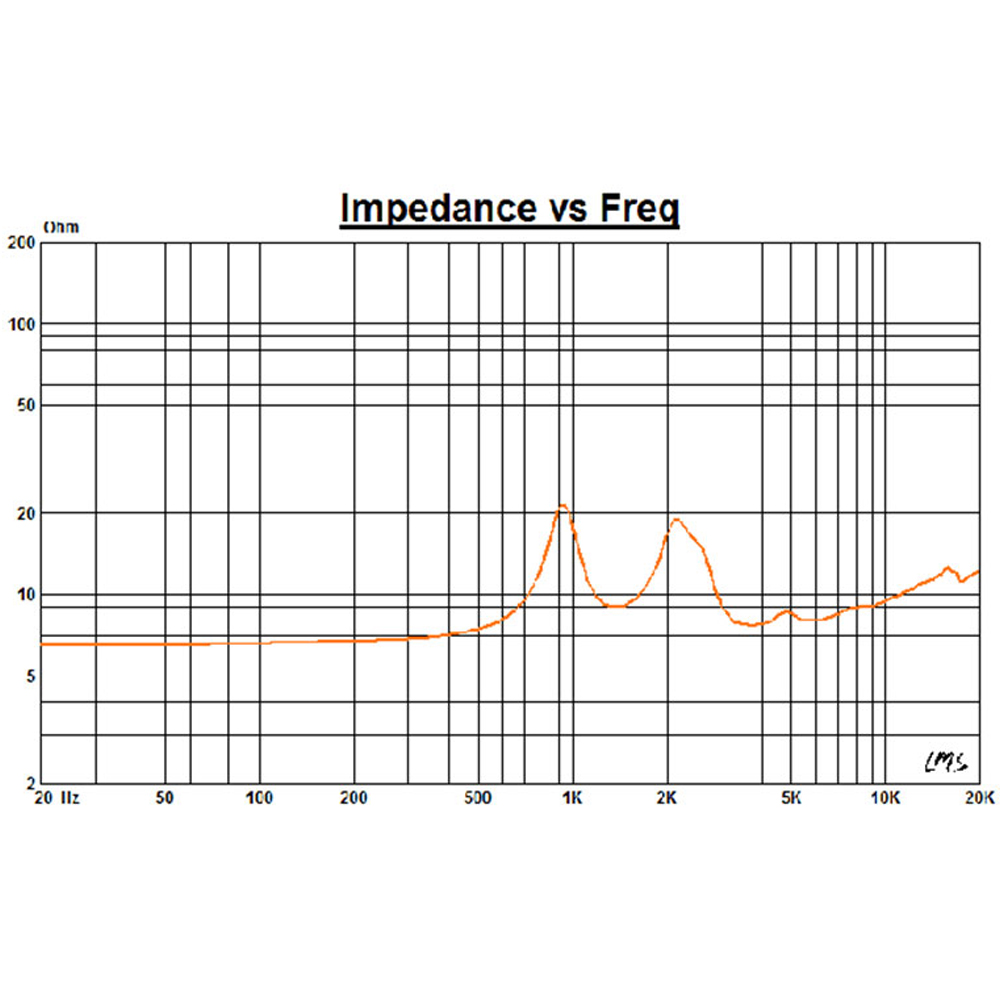

With a rated impedance of 8 ohms and an AES power rating of 50 W (100 W program), the driver is suited for professional sound reinforcement. It delivers a sensitivity of 107 dB (1 W/1 m) and covers a frequency range of 120019,000 Hz, making it ideal for high-frequency sections of loudspeaker systems.

Mechanical & Mounting Description

The unit features a compact form factor with an overall diameter of 85 mm (3.4 in) and a depth of 46 mm (1.8 in). Mounting is supported by:

• Bolt circle diameter: 76 mm (3.0 in)
• Bolt holes:
• 2 M6 (0.24 in)
• 8 8 mm (0.35 in)

This makes it compatible with a variety of horn flanges and mounting systems.

Shipping & Handling Description

Each driver has a net weight of 0.9 kg. Bulk packaging options include:

• 10-unit shipping weight: 9.5 kg
• 10-unit package size: 27 22 14 cm
