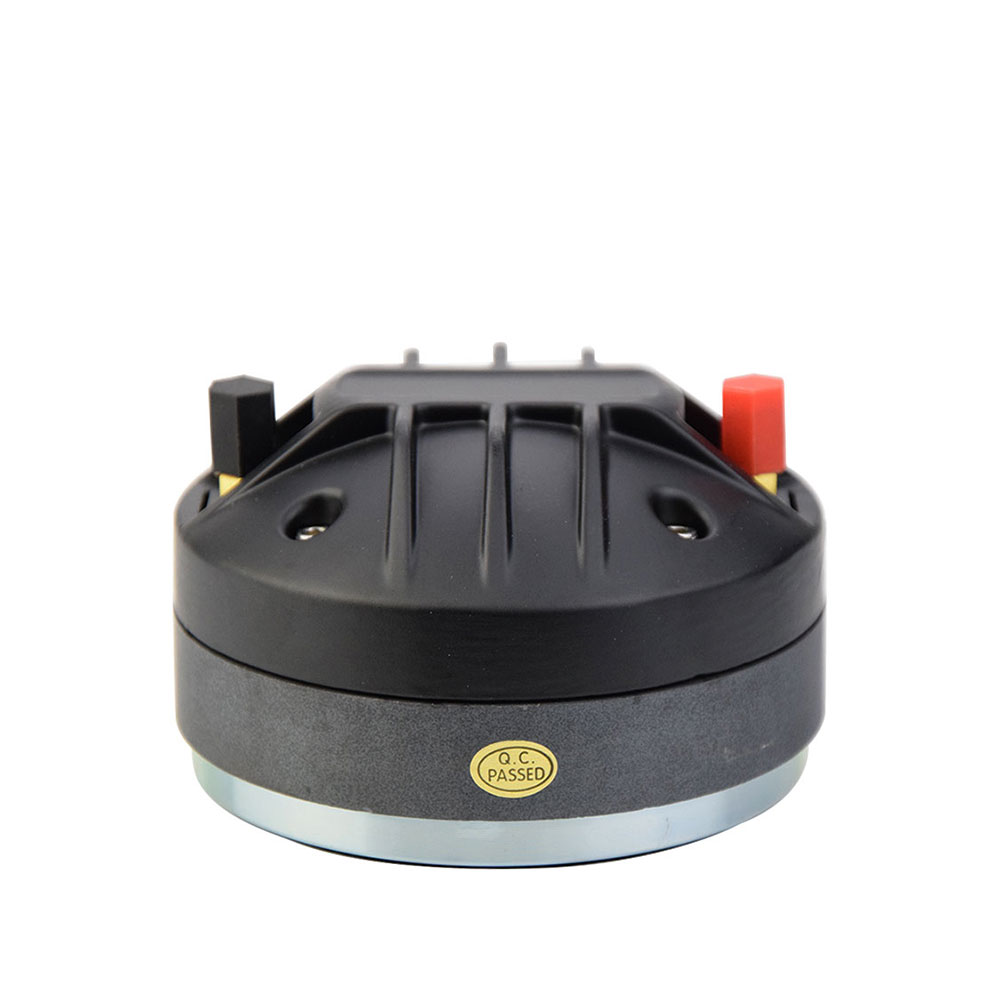

FD driver 1 Audio Compression Driver

Name: FD driver 1 Audio Compression Driver
Brand: Absolute Design Proaudio Co., Ltd
Price: 1000.0 INR
Availability: InStock

1000.0 INR/Piece

Get a Price/Quote

Product Details:

Product Type Compression driver
Frequency (MHz) 1200 Hertz (HZ)
Rated Voltage 50 Watt (W)
Weight (kg) 1.8 Kilograms (kg)
Frequency 1200-18000 Hertz (HZ)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

FD driver 1 Audio Compression Driver Price And Quantity

Minimum Order Quantity 10 Piece
Price 1000.0 INR/Piece

FD driver 1 Audio Compression Driver Product Specifications

Weight (kg) 1.8 Kilograms (kg)
Product Type Compression driver
Rated Voltage 50 Watt (W)
Frequency (MHz) 1200 Hertz (HZ)
Frequency 1200-18000 Hertz (HZ)

Product Description

This 1-inch compression driver is designed for compact professional audio systems requiring clean, articulate high-frequency reproduction. With a lightweight diaphragm, efficient magnetic structure, and optimized acoustic design, it is well suited for PA speakers, stage monitors, two-way enclosures, and high-frequency horn-loaded applications.

Key Features

High Sensitivity 106 dB (1W/1m)
Delivers powerful output even with modest amplifier power.
Frequency Range: 1.2 kHz 18 kHz
Ideal for crisp, detailed highs in small to medium PA systems.
PE Diaphragm with PE Suspension
Lightweight and responsive for smooth high-frequency performance.
1.75" Aluminum Voice Coil (ALR)
Ensures excellent heat dissipation and reliable power handling.
Ferrite Magnet Assembly
Provides consistent magnetic strength and stable operation.
1" (25.4 mm) Nominal Diameter
Fits standard horns and high-frequency waveguides.

Technical Specifications

Parameter	Value
Type	Compression driver
Nominal Diameter	25.4 mm / 1 in
Rated Impedance	8
AES Power Handling	50 W
Continuous Program Power	100 W
Sensitivity (1W/1m)	106 dB
Frequency Range	120018,000 Hz
Diaphragm Material	PE
Suspension Material	PE
Magnet Material	Ferrite
Phase Plug	Plastic
Voice Coil Diameter	44.4 mm / 1.75 in
Voice Coil Material	ALR (outside layer)

ThieleSmall Parameters

Parameter	Value
Fs	1200 Hz
Re	5.8

Mounting Information

Item	Value
Overall Diameter	102 mm / 4.0 in
Bolt Circle Diameter	76 mm / 3.0 in
Bolt Hole Specification	2 M6 (0.24 in)
Depth	62 mm / 2.4 in

Shipping Information

Item	Value
Net Weight (1 unit)	1.8 kg
Shipping Weight (10 units)	19.5 kg
Package Size (10 units)	30 24 16 cm
