NS6.5 Midrange Speaker Driver

Product Description

The Tinboo Audio 165mm (6.5") Midrange Driver delivers accurate and dynamic sound reproduction for midrange frequencies. Designed for professional audio systems, this driver combines high efficiency, reliability, and precision to enhance your sound experience.

Key Specifications:

• Type: Midrange
• Nominal Diameter: 165 mm / 6.5 in
• Rated Impedance: 16
• Nominal (AES) Power: 200 W
• Continuous Program Power: 400 W
• Sensitivity: 95 dB (1W/1m)
• Frequency Range: Fs 6000 Hz
• Voice Coil Diameter: 50 mm / 2.0 in
• Voice Coil Material: Aluminium (Outer/Outer)

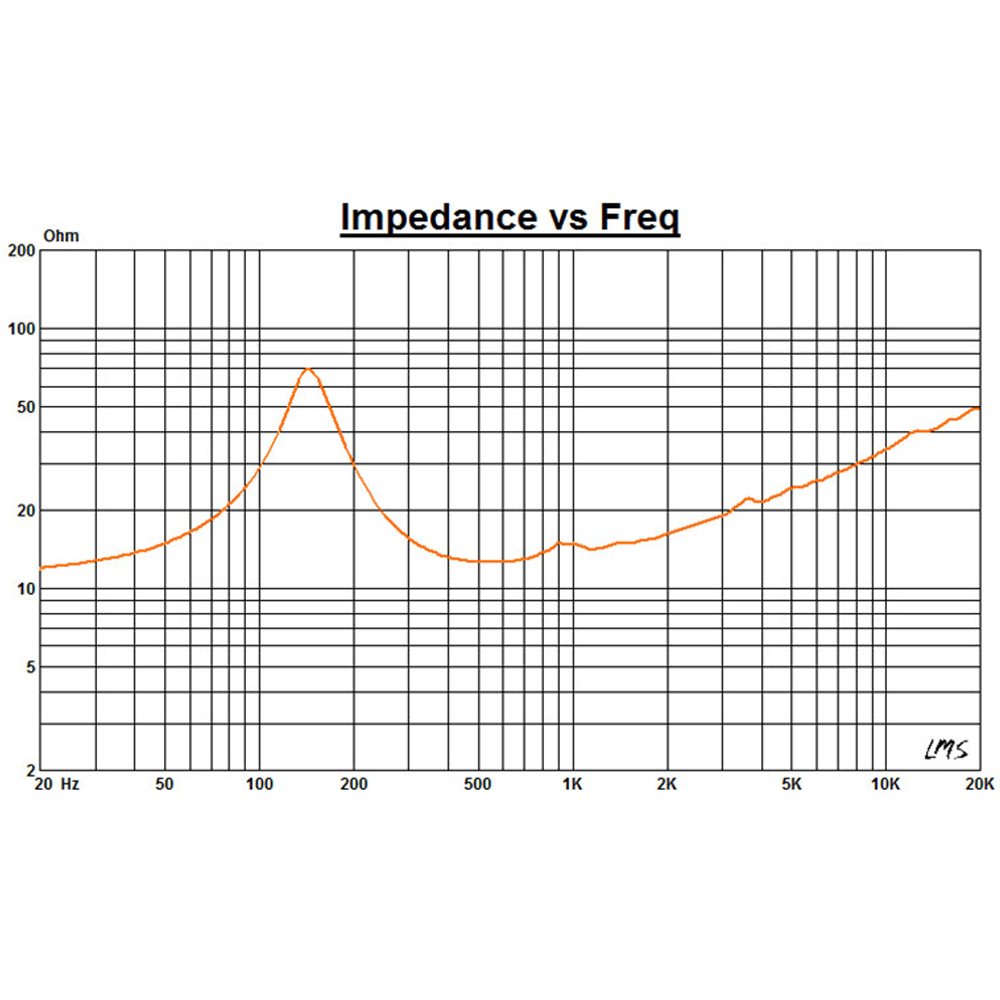

Thiele-Small Parameters:

• Fs: 128 Hz
• Re: 11.8
• Qms: 4.29
• Qes: 0.51
• Qts: 0.45
• Vas: 4.11 L
• Sd: 0.0150 m
• Mms: 11.6 g

Mounting Information:

• Overall Diameter: 187 mm / 7.36 in
• Bolt Circle Diameter: 172 mm / 6.8 in
• Mount Baffle Cut-out: 147 mm / 5.8 in
• Depth: 84 mm / 3.3 in
• Bolt Hole Diameter: 4 5.5 mm / 0.22 in

Shipping Information:

• Net Weight (1 unit): 1.85 kg
• Shipping Weight (6 units): 13 kg
• Package Size (6 units): 48 18 20 cm

Features:

• High-efficiency midrange reproduction with 95 dB sensitivity
• Robust aluminium voice coil for durability and heat dissipation

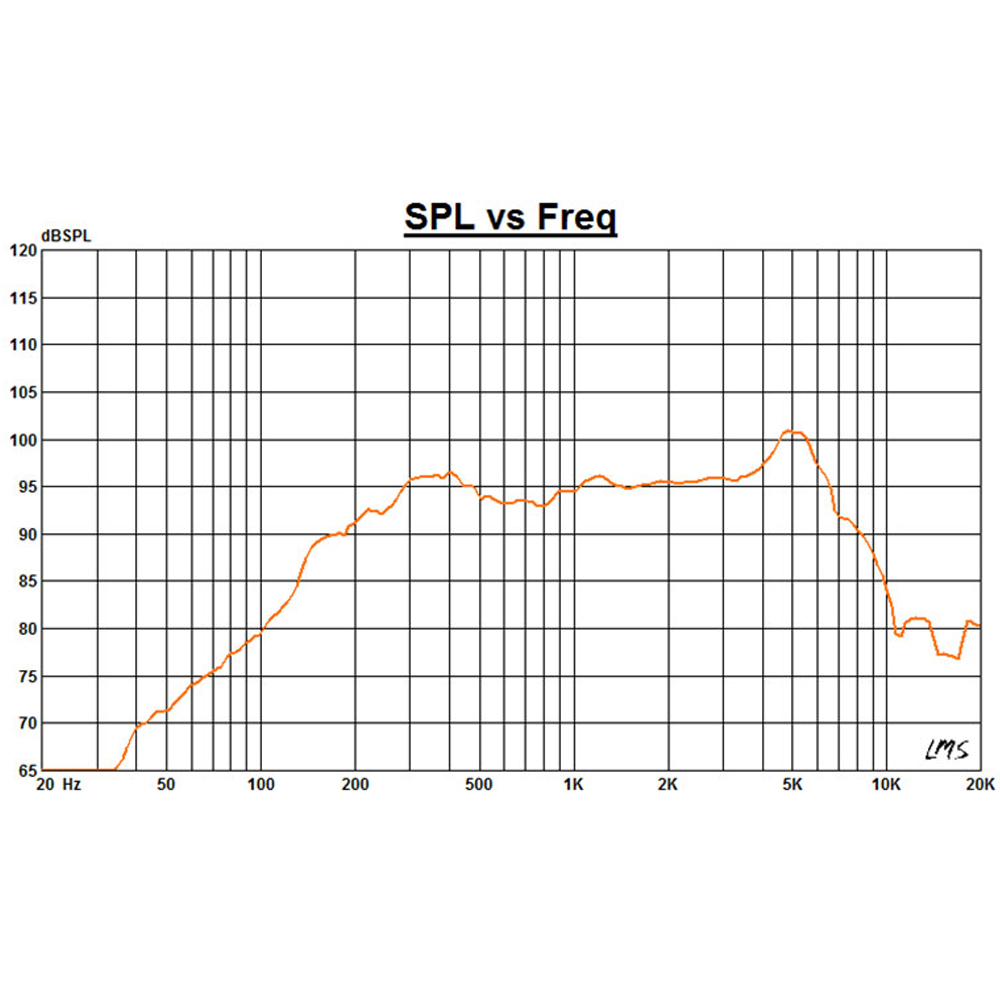

• Smooth frequency response up to 6 kHz for clear and natural sound
• Ideal for professional audio systems and long-term use
