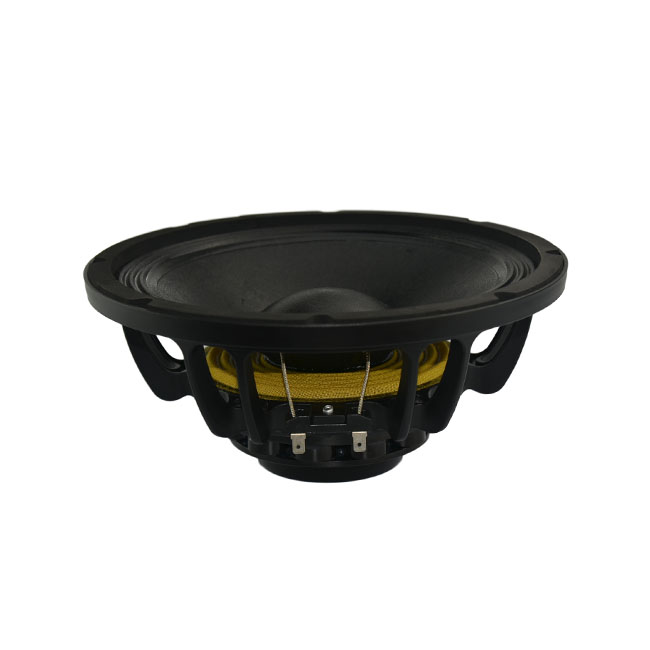

NS10 Mid Bass Speaker Driver

Product Description

This is a mid-bass driver with a nominal diameter of 254 mm (10 in), designed for robust low-to-mid frequency reproduction in professional audio systems. It features a 65 mm (2.5 in) copper voice coil (wound both outside and inside) for efficient heat management and high power handling.

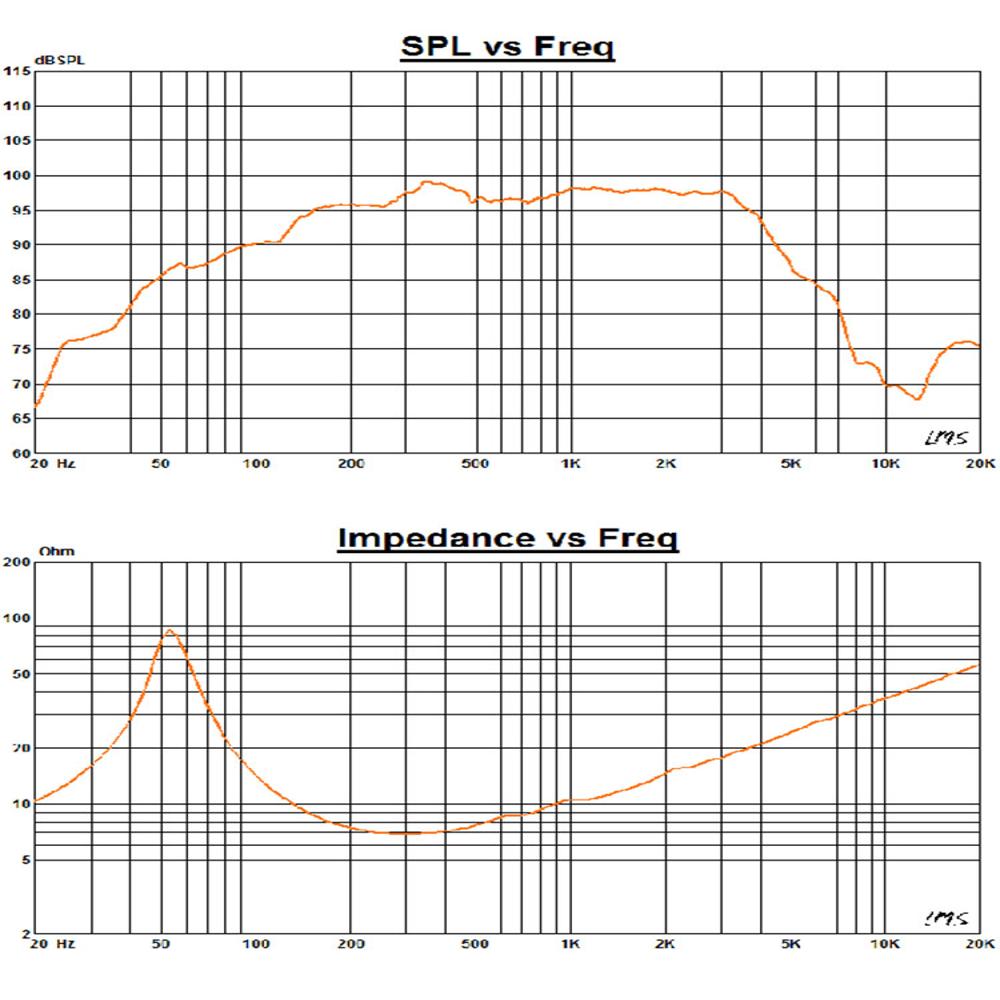

The driver has a rated impedance of 8 ohms and a nominal AES power rating of 250 W (500 W continuous program), delivering a sensitivity of 96 dB (1 W/1 m). Its frequency response ranges from 55 Hz to 4,000 Hz, making it ideal for mid-bass applications in full-range speaker systems or sub-enclosures.

Thiele-Small parameters include:

• Fs: 55 Hz
• Re: 5.6 ohms
• Qms: 4.6
• Qes: 0.32
• Qts: 0.3
• Vas: 46.4 L
• Sd: 0.037 m
• Mms: 37.2 g
• BL: 18.5 TM

Mechanical & Mounting Details

• Overall diameter: 262 mm (10.3 in)
• Depth: 116 mm (4.6 in)
• Mounting bolt circle: 245 mm (9.7 in)
• Baffle cut-out: 233 mm (9.2 in)
• Bolt holes: 8 79 mm (0.280.35 in)

Shipping Information

• Net weight (4 units): 11.5 kg
• Shipping weight (4 units): 13.5 kg
• Package dimensions (4 units): 580 300 320 mm
