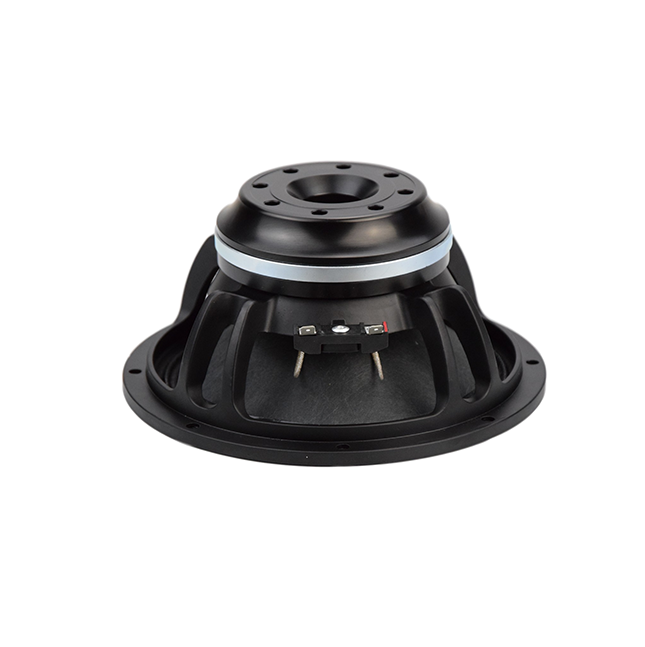

NS4.5 Speaker Driver

Product Description

The Tinboo Audio 200mm (8") Midrange Driver delivers precise, high-fidelity sound performance for professional audio applications. Engineered for efficiency and durability, this driver is ideal for midrange frequencies in high-power sound systems.

Key Specifications:

• Type: Midrange
• Nominal Diameter: 200 mm / 8 in

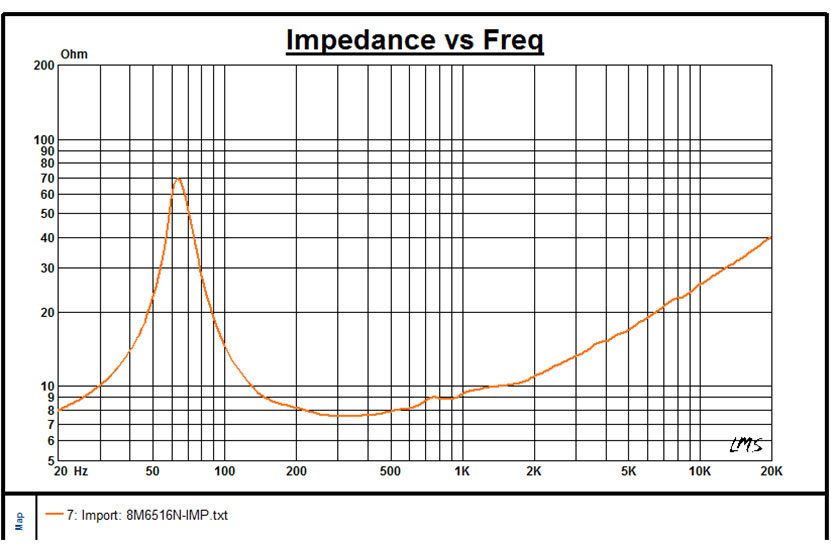

• Rated Impedance: 8
• Nominal (AES) Power: 300 W
• Continuous Program Power: 600 W

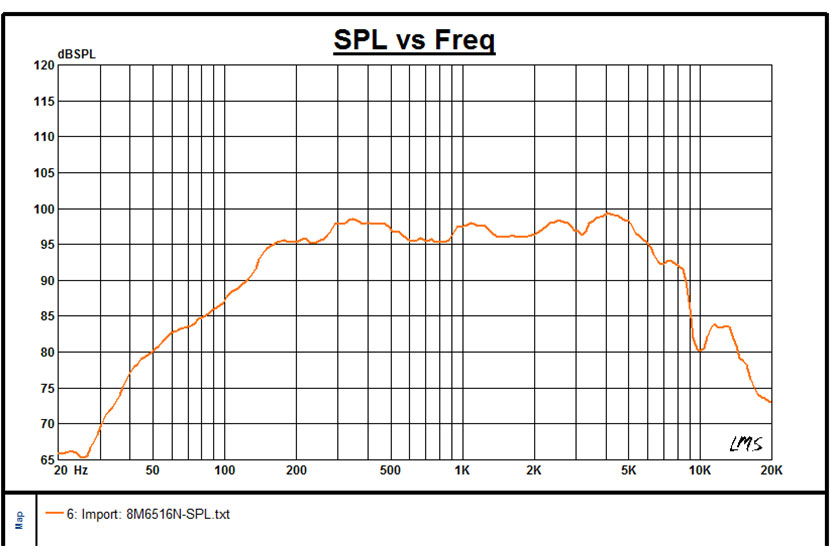

• Sensitivity: 96.5 dB (1W/1m)
• Frequency Range: 88 Hz 7000 Hz
• Voice Coil Diameter: 65 mm / 2.5 in
• Voice Coil Material: Aluminium (Outer/Inner)

Thiele-Small Parameters:

• Fs: 88 Hz
• Re: 6
• Qms: 4.88
• Qes: 0.37
• Qts: 0.35
• Vas: 11.8 L
• Sd: 0.022 m
• Mms: 19.49 g

Mounting Information:

• Overall Diameter: 209 mm / 8.22 in
• Bolt Circle Diameter: 196 mm / 7.7 in
• Mount Baffle Cut-out: 186 mm / 7.3 in
• Depth: 97.5 mm / 3.83 in
• Bolt Hole Diameter: 8 mm / 0.24 in

Shipping Information:

• Net Weight (1 unit): 2.4 kg
• Shipping Weight (4 units): 10.6 kg
• Package Size (4 units): 43 23 24 cm

Features:

• High sensitivity for clear midrange reproduction
• Robust aluminium voice coil for enhanced heat dissipation
• Wide frequency response ensures smooth, natural sound
• Designed for professional audio systems and long-term reliability
